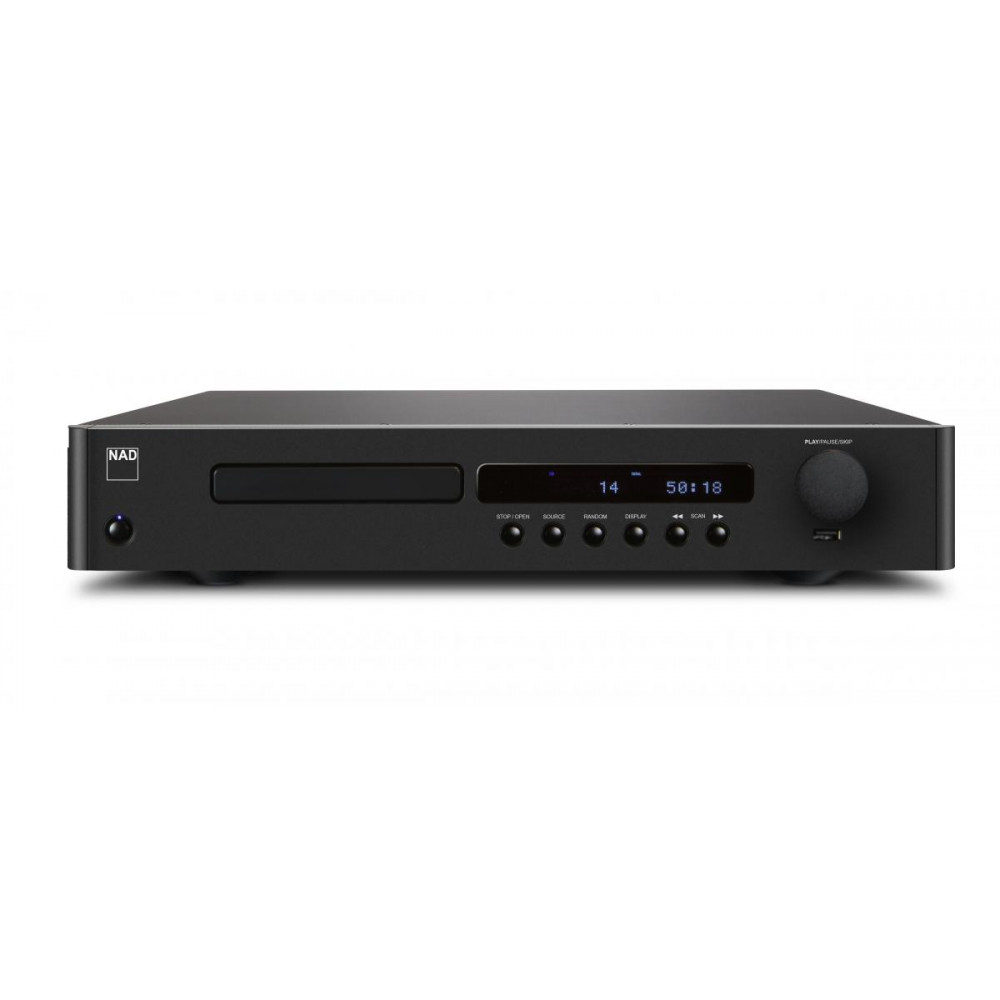

CD Player NAD C568

FEATURES & DETAILS

• CD, CD-R and CD-RW Compatible
• USB Input supports external memory
• and audio rates up to 384kbps
• MP3 and WMA decoding
• NAD CD-9 full function remote control
• Ultra-High Precision Clock Module
• for lowest jitter
• Wolfson 24 bit Digital to Analogue
• Converter
• Super High-Speed OP Amps
• Coaxial Digital Output
• Optical Digital Output
• Toroid Power supply with separate
• power regulators for analogue and
• digital Sections
• VFL Display with CD text
• Repeat Mode for single track or
• entire CD
• Program Play up to 20 tracks
• Random Play
• External IR input
• 12V Trigger input
• <0.5 watt Standby consumption
• Detachable AC cord
• 12V Trigger input

Specifications NAD C568

GENERAL PARAMETERS

• Output level Analog: 2.2 ± 0.1 V
• Frequency response ±0.3 dB (ref. 0 dB 20 Hz-1 kHz), ±0.5 dB (ref. 0 dB 5 kHz-20 kHz)
• Total harmonic distortion <0.01% (ref. 1 kHz, Audio LPF)
• Signal/Noise ratio 118 dB (ref. 1 kHz, A-weighted LPF Stop, Pause)
• Channel balance ±0.5 dB (ref. 0dB 1kHz)
• Dynamic range 95 dB
• Channel separation >90 dB
• De-emphasis -3.73 to -5.33 dB (ref. 0dB 1 kHz, 5 kHz), -8.04 to -10.04 dB (ref. 0dB 1 kHz, 16 kHz)
• Linearity
  • ±0.01 dB (ref. 0dB 1 kHz at -3 dB)
  • ±0.02 dB (ref. 0dB 1 kHz at -6 dB)
  • ±0.02 dB (ref. 0dB 1 kHz at -10 dB)
  • ±0.05 dB (ref. 0dB 1 kHz at -20 dB)
  • ±0.15 dB (ref. 0dB 1 kHz at -60 dB)
• Standby power <0.5W

USB

• Output level 2.2 ± 0.2 V
• Frequency response ±1 dB (ref. 0 dB 20 Hz - 16 kHz)
• Total harmonic distortion <0.03% (ref. 0 dB 1 kHz, Audio LPF)
• Signal/Noise ratio 118 dB

DIMENSION AND WEIGHT

• Unit Dimensions (W x H x D) 435 x 80 x 306 mm (Gross)*
• 17 1/8 x 3 3/16 x 12 11/16 inches
• Net weight 4.9 kg
• 10.8 lbs
• Shipping weight 6.3 kg
• 13.9 lbs
